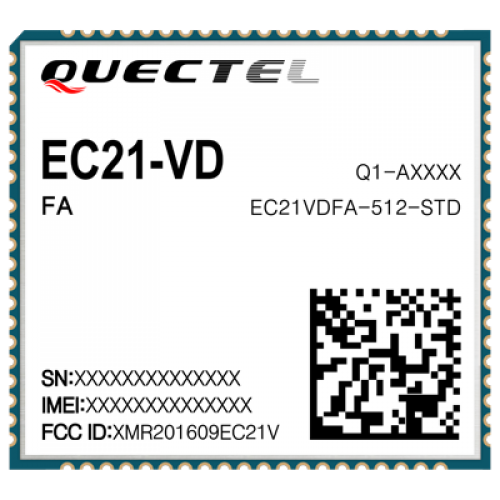

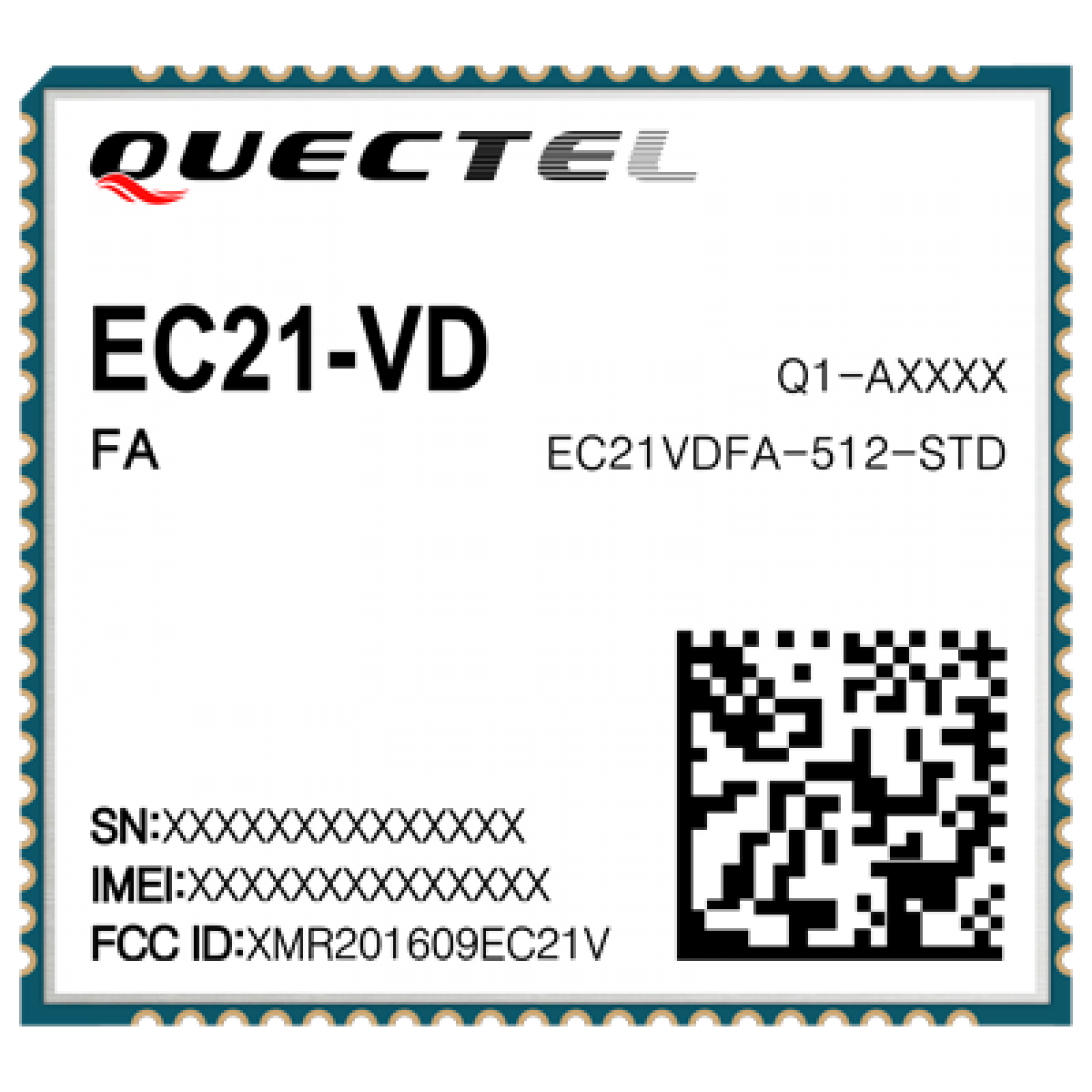

EC21-VD IOT/M2M-optimized LTE Cat1 Module 1 Pcs
- Brand: Quectel
- EC21-VD
- Availability: In Stock
- EC21-VD IOT/M2M-optimized LTE Cat1 Module 1 Pcs
$88.00 $99.00
Product description
The EC21-VD is a CAT1 LTE-only module with bands 4 & 13 supported. It supports GNSS, but VoLTE is not avaible.
Chassis & power source
Dimensions
32mmx29mmx2.4mm in.
Relative humidity —
Stored temperature -45C °F to 85°C °F
Operating temperature -45C °F to 85 °F
Weight 4.6g lbs
Voltage supply
Supply voltage: 3.3V~4.3V Typical supply voltage: 3.8V
Power consumption —
Overview
Network technology： LTE Only
LTE category support： Cat 1
Form factor ：LCC
Features
- UDP
- —
- TCP
- —
- UART
- GPIO
- Serial
- GPS
- —
- LTE
Band4 (1700 MHz)
Band13 (700 MHz)
